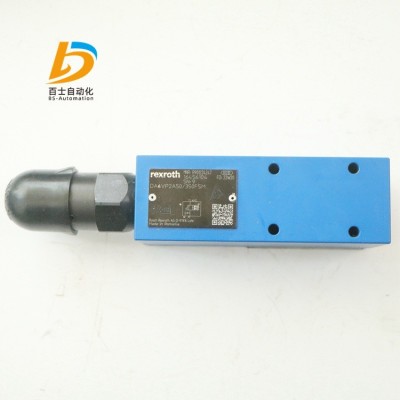

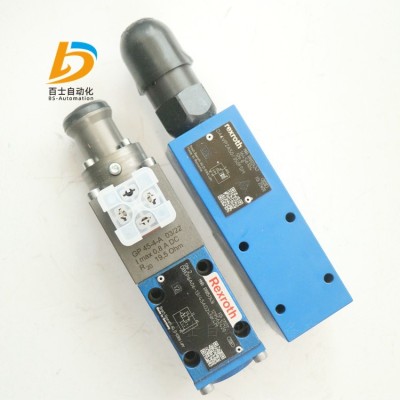

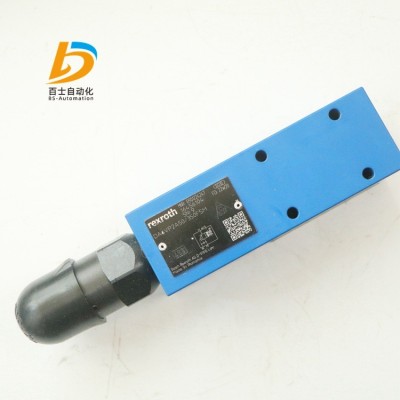

德国力士乐R901224247 DA6VP2A50/350FSM压力切断阀
武汉百士自动化设备有限公司主营销售产品，产品实拍，原装正品，客户买的安心，用的放心。常用产品现
货供应，欢迎新老客户询价采购！
产品简介：
力士乐REXROTH先导式压力截止阀
DA6V
规格 6
组件系列 5X
大工作压力 350 bar
大流量 40 l/min
重量 2.2kg
安装位置 任意
温度范围 -30 … +80℃
粘度范围 10 … 800mm²/s
建议粘度范围 20 … 60mm²/s
用于底板安装
油口安装面符合 ISO 5781-03-04-0-00（不符合标准，且不带孔）
底板（单独订购）
作为插装阀
调整类型：六角套筒和保护帽
4 个压力等级
可调式切换压差（公称值的 10 % 至 50 %）
DA6V 型压力阀是一种可无级调节切换压差的先导式压力截止阀。此类阀主要由拧入式插装阀的先导控制级和主级、单向阀和壳
体组成。
通过油口 B 将 P 中的泵流量引入系统的蓄能器中。如果油口 B 中执行机构的压力超过设定顶部切换压力，则先导控制阀将打开
并将通过油口 A (Y) 启动先导油排放。单向阀将关闭油口 B 至 P 的连接，且泵流量将切换到卸压油路（从 P 到T）。
型号 DA6VP
将泵流量从 P 至 B（泵 → 执行机构）切换为 P 至 T（泵 → 油箱）。
泵通过单向阀向液压系统（P 至 B）供油。通道 B 中的压力通过控制油路和孔作用于拧入式插装阀 的先导控制。同时，通道 P
中的压力通过孔施加于主控制阀芯的弹簧负载侧。当在拧入式插装阀 中通过调节主轴设置的顶部截止压力到达液压系统（通道
B）时，拧入式插装阀 的先导控制将打开从主阀芯的弹簧负载侧到控制油路的连接和通过油口 A (Y) 进入油箱的外部连接。由于
存在孔，在主阀芯处产生了压降。主阀芯将升离阀座，打开 P 至 T 的连接。单向阀关闭 B 至 P 的连接，而拧入式插装阀 的先
导控制在 B 中执行机构压力的作用下保持在打开位置。
将泵流量从 P 至 T（泵 → 油箱）切换为 P 至 B（泵 → 执行机构）。
如果根据在调节主轴处设定的较低底部压力值，B 中的执行机构压力与截止压力相比较有所下降，则拧入式插装阀 的先导控制
将设置回其初始位置。
这样，压力将主阀芯的弹簧负载侧累积。从而通过弹簧关闭从 P 到 T 的连接，并且泵将通过单向阀向液压系统，即从 P 到 B 进
行供油。
型号 DA6VA
在此阀型号中，泵压力口不是在 P 中，而是在 A 中设计的。阀门将泵流量从 A 引至 P 或从 A 引至 T。泄油口位于 B (Y) 中。
切换过程与型号“VP”（此阀型号支持油路块连接）相对应。
注意！
仅限间接压力限制功能：
泵压力（至油箱）的压力限制功能不是直接提供的，而是仅通过执行机构通道中的单向阀和控制油路间接提供。
设置切换压差：
出厂时，阀门被设置为切换压差约为公称压力的 10 % 至 12 %。可以设置为公称压力的 50 %。
交付时，调节主轴被设置为小可调节顶部切换压力，即将调节主轴拧出到限位止挡。
通过拧入调节主轴，可增大顶部切换压力。
通过拧入调节主轴，可增大底部切换压力而切换压差将减小。通过拧出调节主轴，可减小底部切换压力而切换压差将增加。
通过锁紧螺钉和锁紧螺母 确保压力调节。
应用注意事项：
在压力截止阀和液压蓄能器之间建立一个低流阻的短连接。
注意！
仅可使用合适的蓄能器安全设备操作蓄能器！
泵压力（至油箱）的压力限制功能不是直接提供的，而是仅通过执行机构通道中的单向阀和控制油路间接提供。
注意： 切换压差出厂设置
出厂时，阀门被设置为切换压差约为公称压力的 10 % 至 12 %，并且是在已卸压状态（调节主轴拧出到限位止挡，请参阅产
品说明）下提供的。
调节是在公称压力、泵流量约为 10 l/min、执行机构流量约为 2 l/min 的条件下实现的。
不同的系统条件（尤其是泵流量和执行机构流量很高时）可能导致较高的切换压力。在这里，通过此阀可以选择性地调节系统
切换压差。
德国力士乐REXROTH压力切断阀订货号和型号：
力士乐REXROTH先导式压力切断阀DA 6 V
R901224217 DA6VA2A5X/100FSM
R901224217 DA6VA2A50/100FSM
R987400141 DA6VA2A5X/100FSMSO26-746
R901184163 DA6VA2A5X/100FSV
R901224218 DA6VA2A5X/200FSM
R901184165 DA6VA2A5X/200FSV
R901224223 DA6VA2A5X/350FSM
R901184169 DA6VA2A5X/350FSV
R901224225 DA6VA2A5X/50FSM
R901184162 DA6VA2A5X/50FSV
R901224226 DA6VA2B5X/100FSM
R901184669 DA6VA2B5X/100FSV
R901224246 DA6VA2B5X/200FSM
R901184173 DA6VA2B5X/200FSV
R901224228 DA6VA2B5X/350FSM
R901184176 DA6VA2B5X/350FSV
R901224230 DA6VA2B5X/50FSM
R901184170 DA6VA2B5X/50FSV
R901224232 DA6VP2A5X/100FSM
R901184158 DA6VP2A5X/100FSV
R901224233 DA6VP2A5X/200FSM
R901224233 DA6VP2A50/200FSM
R901311545 DA6VP2A5X/200FSM/60
R901184160 DA6VP2A5X/200FSV
R901368965 DA6VP2A5X/200FSV/60
R901224247 DA6VP2A5X/350FSM
R901184161 DA6VP2A5X/350FSV
R901224234 DA6VP2A5X/50FSM
R901184151 DA6VP2A5X/50FSV
R901224235 DA6VP2B5X/100FSM
R901184179 DA6VP2B5X/100FSV
R901224238 DA6VP2B5X/200FSM
R901224238 DA6VP2B50/200FSM
R901184183 DA6VP2B5X/200FSV
R901224242 DA6VP2B5X/350FSM
R901184186 DA6VP2B5X/350FSV
R901224244 DA6VP2B5X/50FSM
R901184177 DA6VP2B5X/50FSV
力士乐REXROTH先导式压力切断阀DA
R900598573 DA10-.-5X/...VSO26
R900926229 DA10-1-5X/100-10
R901284384 DA10-1-5X/100-10V
R900555658 DA10-1-5X/100-10Y
R900500650 DA10-1-5X/100-17
R900500480 DA10-1-5X/100-17Y
R901011277 DA10-1-5X/200-10
R900570967 DA10-1-5X/200-10Y
R900599453 DA10-1-5X/200-17
R900599979 DA10-1-5X/200-17Y
R900597597 DA10-1-5X/200-17Y/12
R900948351 DA10-1-5X/315-10
R901059701 DA10-1-5X/315-10V
R900519891 DA10-1-5X/315-10Y
R900505050 DA10-1-5X/315-17
R900597599 DA10-1-5X/315-17/12
R901016565 DA10-1-5X/315-17V
R900503486 DA10-1-5X/315-17Y
R900781534 DA10-1-5X/315-17Y/12
R900951672 DA10-1-5X/315-17YV
R900742930 DA10-1-5X/50-10
R900551640 DA10-1-5X/50-17
R900958395 DA10-1-5X/50-17Y
R901097836 DA10-1-5X/50P35-17
R900557180 DA10-1-5X=315-17/12
R900593066 DA10-2-3X/315XSO45
R900375977 DA10-2-3X/315XSO45
R901185154 DA10-2-5X/100-080-17Y
R900597976 DA10-2-5X/100-10
R978865666 DA10-2-5X/100-10/12
R900521127 DA10-2-5X/100-10Y
R901437126 DA10-2-5X/100-10YV/12
R900597357 DA10-2-5X/100-17
R900597290 DA10-2-5X/100-17V
R901175015 DA10-2-5X/100-17V/12
R900597504 DA10-2-5X/100-17Y
R978864876 DA10-2-5X/100-17Y/12
R900500005 DA10-2-5X/100-17YV
R901328234 DA10-2-5X/100-FSY
R900931206 DA10-2-5X/160-17
R900701912 DA10-2-5X/160-17Y
R900504453 DA10-2-5X/200-10
R900746481 DA10-2-5X/200-10V
R900597118 DA10-2-5X/200-10Y
R900529071 DA10-2-5X/200-10YSO51
R900516609 DA10-2-5X/200-10YSO65
R900597015 DA10-2-5X/200-17
R900563179 DA10-2-5X/200-17/12
R900572165 DA10-2-5X/200-17J
R900917909 DA10-2-5X/200-17V
R900597016 DA10-2-5X/200-17Y
R900546354 DA10-2-5X/200-17YSO65
R900740745 DA10-2-5X/200-17Y/12
R987253258 DA10-2-5X/200-17YV
R901241954 DA10-2-5X/200-FS
R901415388 DA10-2-5X/200-FSB07Y
R901360820 DA10-2-5X/200-FSY
R900533467 DA10-2-5X/315-00SO70
R900596908 DA10-2-5X/315-10
R900562533 DA10-2-5X/315-10SO65
R900505038 DA10-2-5X/315-10/12
R900572868 DA10-2-5X/315-10/12SO64
R900572868 DA10-2-5X/315-10/12SO64
R900950226 DA10-2-5X/315-10V
R900598275 DA10-2-5X/315-10Y
R900521865 DA10-2-5X/315-10YSO65
R900521865 DA10-2-5X/315-10YSO65
R900702698 DA10-2-5X/315-10YV
R978030273 DA10-2-5X/315-10YV/12
R900596998 DA10-2-5X/315-17
R900519859 DA10-2-5X/315-17SO66
R900599741 DA10-2-5X/315-17/12
R900514820 DA10-2-5X/315-17/12SO64
R900506970 DA10-2-5X/315-17V
R900596762 DA10-2-5X/315-17Y
R900941546 DA10-2-5X/315-17Y/12
R901101780 DA10-2-5X/315-280-10Y
R901094311 DA10-2-5X/315-280-17
R901396225 DA10-2-5X/315-FS
R901217044 DA10-2-5X/315-FSB07
R900507095 DA10-2-5X/50-10
R900521879 DA10-2-5X/50-10SO51
R900951908 DA10-2-5X/50-10Y
R900562925 DA10-2-5X/50-17
R901346305 DA10-2-5X/50-17J
R900533383 DA10-2-5X/50-17Y
R901354530 DA10-2-5X/50-FS
R901432916 DA10-2-5X/50-FSY
R901186245 DA10-2-5X=100-080-17Y
R900608728 DA10-2-5X=200-17
R900907303 DA10-2-5X=315-17
R900945274 DA10-3-5X/100-10
R900523909 DA10-3-5X/100-10Y
R900515881 DA10-3-5X/100-17
R900501040 DA10-3-5X/100-17Y
R900525700 DA10-3-5X/200-10
R900528302 DA10-3-5X/200-10Y
R900501819 DA10-3-5X/200-17
R900931192 DA10-3-5X/200-17/12
R900518689 DA10-3-5X/200-17Y
R900779831 DA10-3-5X/315-10
R900563379 DA10-3-5X/315-10Y
R900503840 DA10-3-5X/315-17
R900504641 DA10-3-5X/315-17Y
R900957509 DA10-3-5X/50-10
R900551092 DA10-3-5X/50-17
R901141564 DA10-7-5X/100-10
R900510443 DA10-7-5X/100-17
R901106508 DA10-7-5X/200-10
R900929907 DA10-7-5X/200-10Y
R900559994 DA10-7-5X/315-17
R900522059 DA20-.-5X/...
R900507589 DA20-1-5X/100-10
R900534710 DA20-1-5X/100-10Y
R900598619 DA20-1-5X/100-17
R900757899 DA20-1-5X/100-17V
R900598744 DA20-1-5X/100-17Y
R900907086 DA20-1-5X/200-10
R900597612 DA20-1-5X/200-10Y
R900573234 DA20-1-5X/200-10YV
R900503335 DA20-1-5X/200-17
R900938625 DA20-1-5X/200-17V
R900596630 DA20-1-5X/200-17Y
R900780056 DA20-1-5X/315-10
R900511366 DA20-1-5X/315-10V
R900716439 DA20-1-5X/315-10Y
R900594108 DA20-1-5X/315-17
R900500655 DA20-1-5X/315-17V
R900598535 DA20-1-5X/315-17Y
R901272533 DA20-1-5X/50-10
R900572008 DA20-1-5X/50-17Y
R900597959 DA20-2-5X/100-10
R900501020 DA20-2-5X/100-10Y
R900939819 DA20-2-5X/100-10YV
R900596761 DA20-2-5X/100-17
R900511435 DA20-2-5X/100-17/12
R900597271 DA20-2-5X/100-17Y
R900501261 DA20-2-5X/100-17Y/12
R901352598 DA20-2-5X/100-FSB07
R901390446 DA20-2-5X/100-FSB07Y
R900509466 DA20-2-5X/200-10
R900598100 DA20-2-5X/200-10Y
R900546752 DA20-2-5X/200-10YSO65
R901088560 DA20-2-5X/200-150-10
R900597135 DA20-2-5X/200-17
R900577060 DA20-2-5X/200-17SO65
R900598037 DA20-2-5X/200-17/12
R900507180 DA20-2-5X/200-17V
R900500750 DA20-2-5X/200-17V/12
R900597500 DA20-2-5X/200-17Y
R900555928 DA20-2-5X/200-17YSO65
R900501156 DA20-2-5X/200-17Y/12
R900597764 DA20-2-5X/200-17YV/12
R901241955 DA20-2-5X/200-FS
R900500580 DA20-2-5X/315-10
R900511362 DA20-2-5X/315-10V
R900509554 DA20-2-5X/315-10Y
R901212697 DA20-2-5X/315-10YV/12
R900590621 DA20-2-5X/315-17
R900550017 DA20-2-5X/315-17/12
R900535272 DA20-2-5X/315-17V
R900596751 DA20-2-5X/315-17Y
R901064894 DA20-2-5X/315-17Y/12
R901217576 DA20-2-5X/315-FSB07
R900562992 DA20-2-5X/350-17
R900529158 DA20-2-5X/50-10
R900935308 DA20-2-5X/50-17
R900577312 DA20-2-5X/50-17/12
R900576988 DA20-2-5X/50-17Y
R901435088 DA20-2-5X/50-FSB07Y
R900576446 DA20-2-5X=200-17Y
R900548524 DA20-3-5X/100-10
R900571716 DA20-3-5X/100-10Y
R900503084 DA20-3-5X/100-17
R900500495 DA20-3-5X/100-17V
R900500991 DA20-3-5X/100-17Y
R900921044 DA20-3-5X/200-10
R900532616 DA20-3-5X/200-10Y
R900945463 DA20-3-5X/200-10YV
R900599121 DA20-3-5X/200-17
R900723726 DA20-3-5X/200-17V
R900907087 DA20-3-5X/200-17Y
R900511237 DA20-3-5X/200-17YV
R901151794 DA20-3-5X/315-10
R900957696 DA20-3-5X/315-10Y
R900502103 DA20-3-5X/315-17
R900512121 DA20-3-5X/315-17Y
R900910121 DA20-3-5X/50-10Y
R900734484 DA20-3-5X/50-17
R900617103 DA20-3-5X/50-17V
R900919188 DA20-7-5X/100-10
R900727209 DA20-7-5X/200-10Y
R900617686 DA30-1-5X/100-10
R900528843 DA30-1-5X/100-17
R900598053 DA30-1-5X/100-17Y
R901085559 DA30-1-5X/200-10
R900599704 DA30-1-5X/200-17
R900598376 DA30-1-5X/200-17Y
R900715108 DA30-1-5X/315-10Y
R900501759 DA30-1-5X/315-10Y/12
R900500473 DA30-1-5X/315-17
R901058572 DA30-1-5X/315-17V
R900598967 DA30-1-5X/315-17Y
R900503730 DA30-1-5X/50-17Y
R900909951 DA30-2-5X/100-10Y
R900500791 DA30-2-5X/100-17
R900500654 DA30-2-5X/100-17/12
R900535171 DA30-2-5X/100-17V/12
R900596830 DA30-2-5X/100-17Y
R978012493 DA30-2-5X/100-17Y/12
R900519174 DA30-2-5X/200-10
R901046802 DA30-2-5X/200-10V
R900597119 DA30-2-5X/200-10Y
R900501857 DA30-2-5X/200-17
R900534371 DA30-2-5X/200-17/12
R900513844 DA30-2-5X/200-17J
R900507010 DA30-2-5X/200-17Y
R900787850 DA30-2-5X/200-17YV
R901022545 DA30-2-5X/315-10
R900903678 DA30-2-5X/315-10Y
R900503396 DA30-2-5X/315-17
R900510450 DA30-2-5X/315-17/12
R900505620 DA30-2-5X/315-17Y
R901217578 DA30-2-5X/315-FSB07
R900245529 DA30-2-5X/50-10
R900552088 DA30-2-5X/50-10Y
R900549825 DA30-2-5X/50-17
R900506919 DA30-2-5X/50-17Y
R900784967 DA30-2-5X/50-17YV
R900965850 DA30-3-5X/080-10Y
R900570424 DA30-3-5X/100-10Y
R900549649 DA30-3-5X/100-17
R900513582 DA30-3-5X/100-17Y
R901235894 DA30-3-5X/200-10
R900907815 DA30-3-5X/200-10Y
R901093994 DA30-3-5X/200-17
R900712939 DA30-3-5X/200-17Y
R900551643 DA30-3-5X/315-17
R978901340 DA10-1-5X/315-17YV/12
R978862145 DA10-2-5X/100-17/12
R978011730 DA10-2-5X/200-10/12
R978008424 DA10-2-5X/200-10Y/12
R987012091 DA10-5X/...-17RE-765251-4-0
R978909187 DA20-1-5X/200-10Y/12
R978868989 DA20-1-5X/200-17/12
R978871072 DA20-1-5X/200-17Y/12
R978898564 DA20-1-5X/315-17/12
R978901377 DA20-1-5X/315-17YV/12
R978916947 DA20-2-5X/100-10V/12
R978865640 DA20-2-5X/100-17V/12
R978902561 DA20-2-5X/315-10/12
R978872408 DA30-1-5X/315-17/12
R978010174 DA30-2-5X/50-10/12
R978898008 DA30-2-5X/50-17V/12
R900944341 DAC1-5X/200-10
R900597552 DAC1-5X/200-10Y
R900518827 DAC1-5X/200-17
R900513499 DAC1-5X/200-17Y
R900524135 DAC1-5X/315-10
R900598615 DAC1-5X/315-10Y/12
R900502173 DAC1-5X/315-17
R900598534 DAC1-5X/315-17Y
R900563506 DAC1-5X/50-17Y
R900523681 DAC2-5X/100-10
R900903679 DAC2-5X/100-10Y
R900502462 DAC2-5X/100-17
R900529919 DAC2-5X/100-17Y
R900547885 DAC2-5X/200-00SO72
R900508238 DAC2-5X/200-00YSO20
R900503635 DAC2-5X/200-10
R900958154 DAC2-5X/200-10SO46
R900520225 DAC2-5X/200-10Y
R900763599 DAC2-5X/200-10Y/12
R900597205 DAC2-5X/200-17
R900976227 DAC2-5X/200-17/12
R900502644 DAC2-5X/200-17V
R900505759 DAC2-5X/200-17Y
R900599082 DAC2-5X/315-10
R900520302 DAC2-5X/315-10V
R900597953 DAC2-5X/315-17
R978878641 DAC2-5X/315-17/12
R900520301 DAC2-5X/315-17V
R900598099 DAC2-5X/315-17Y
R900903681 DAC2-5X/50-10Y
R901029713 DAC2-5X/50-17/12
R900903680 DAC2-5X/50-17Y
R900599192 DAC3-5X/200-00SO29
R900944277 DAC3-5X/200-10
R900598616 DAC3-5X/200-17
R900901162 DAC3-5X/200-17/12
R900514423 DAC3-5X/315-17
R900509286 DAC30-1-5X/200-10
R901093146 DAC30-1-5X/200-10Y
R900597879 DAC30-1-5X/200-17
R900918629 DAC30-1-5X/200-17Y
R900596611 DAC30-1-5X/315-17
R900509557 DAC30-1-5X/315-17Y
R900597316 DAC30-2-5X/100-10
R900573413 DAC30-2-5X/100-10Y
R900519936 DAC30-2-5X/100-10YV
R900507744 DAC30-2-5X/100-17
R900514940 DAC30-2-5X/100-17V
R900515058 DAC30-2-5X/100-17Y
R900537730 DAC30-2-5X/200-10
R900943756 DAC30-2-5X/200-10V
R900597120 DAC30-2-5X/200-10Y
R900558848 DAC30-2-5X/200-10Y=LB
R900597541 DAC30-2-5X/200-17
R900505541 DAC30-2-5X/200-17Y
R900546348 DAC30-2-5X/200-17YV
R900513800 DAC30-2-5X/315-10
R900969706 DAC30-2-5X/315-10V
R900598452 DAC30-2-5X/315-17
R900597611 DAC30-2-5X/315-17Y
R901007242 DAC30-2-5X/50-10
R900763492 DAC30-2-5X/50-10Y
R900247867 DAC30-3-5X/100-17
R900557717 DAC30-3-5X/200-17V
R900958955 DAC30-3-5X/315-17
R900515856 DAC30-3-5X/50-17YV
R978868397 DAC-2-5X/100-17/12
R987156169 DAC-2-5X/315-17SO26-567
R987109281 DAC-2-5X/50-17/12
R901264745 DAC1-5X/100-10
R900597813 DAC1-5X/100-17Y
